Semiconductor Wafer Handling Systems

Semiconductor manufacturers are often faced with the challenging task of finding new, more efficient ways to automate the handling of their wafers. Wafers come in a range of shapes and sizes, thus needing different handling requirements. So, figuring out an appropriate handling solution can sometimes pose a timely and costly challenge for manufacturers.

This is where Jabil Precision Automation can help. Whether it’s solving a complex wafer handling application or integrating automation into your current process tool; our proven experience and deep understanding of wafer handling automation and factory integration requirements allow us to develop wafer handling equipment that addresses all your project needs.

We design and build reliable, industry-trusted semiconductor wafer handling systems for some of the world’s leading semiconductor manufacturers around the globe. Whether it’s a turnkey Equipment Front End Module (EFEM) or a fully custom wafer handling solution -- our wafer handling know-how will ensure your next automation project is a success.

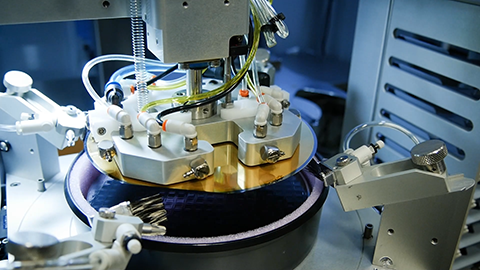

Example: Coinstack Wafer Handling System coinstack wafer handling system


What is a Wafer Handling System?

An automated wafer handler is a robotics system designed to automate and facilitate the handling of silicon wafers during the semiconductor manufacturing process. Wafer handlers are integrated with semiconductor process tools which perform various manufacturing tasks throughout the semiconductor production lifecycle. Automated wafer handling systems can be found throughout various Back End of Line (BEOL) or Front End of Line (FEOL) manufacturing processes as the robot facilitates the transfer of wafers between process tools.

Our mission is to provide you with a solution that facilitates the transfer of your wafers safely and efficiently during the manufacturing process.

Jabil Precision Automation Solutions offers a full range of automated wafer handling systems. Based on our standardized wafer handling automation platforms -- WaferMate 300 and WaferMate 200 -- our systems are highly-configurable and customized to meet your exact specifications.

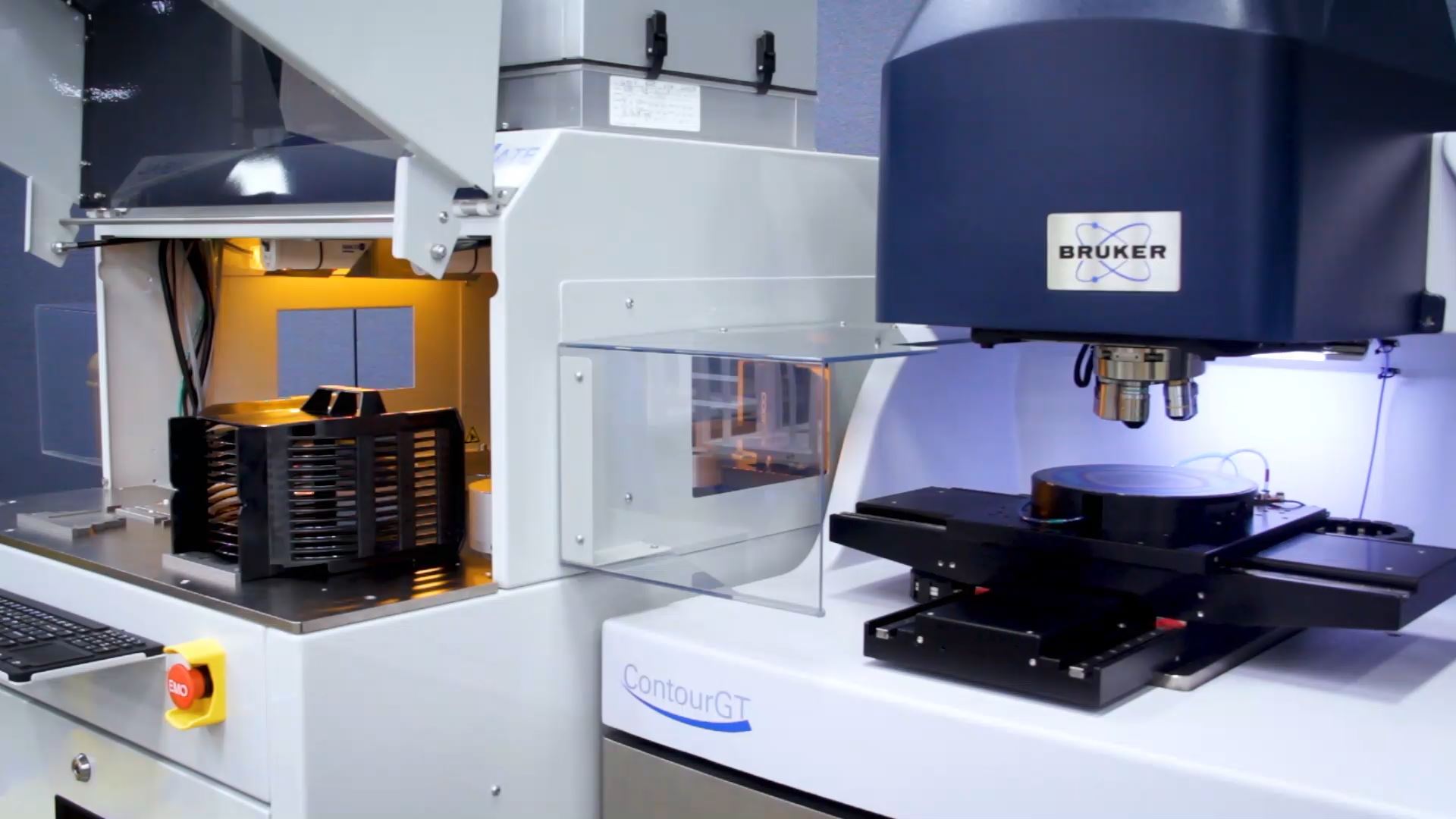

Example: Coinstack Wafer Handling System metrology wafer handling system

A typical wafer handling system consists of the following base components. Depending on the complexity or simplicity of the solutions, components can be customized to suit your wafer handling needs.

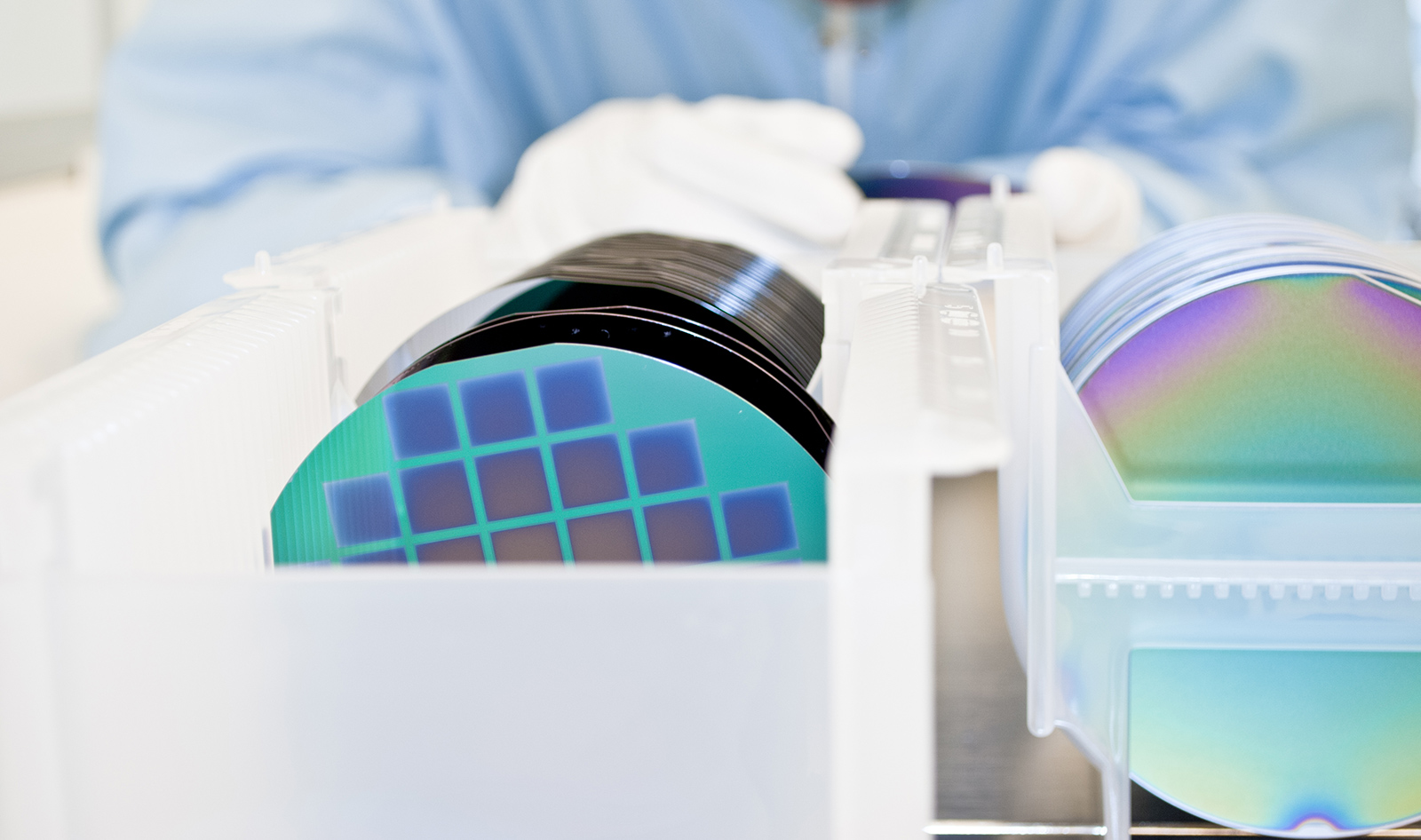

Wafer Carrier

A wafer carrier is used to store and transport wafers during the manufacturing process. We support the integration of a variety of wafer carriers and mini environments.

  • FOUPs (Front Opening Universal Pods)
    • Typically used with 300mm wafers applications
  • FOSB Box (Front Opening Shipping Box)
    • Stores wafers during transportation
  • SMIF Pods (Standard Mechanical Interface)
    • Typically used with 200mm wafer applications
  • Open Cassettes
    • Used with 200mm or smaller wafer applications
  • Coinstack “Horizontal Wafer Stackers”
    • Typically used transport fragile wafers (e.g. thin and warped wafers)

Wafer Pre-Aligner

The wafer aligner is an essential system tool that’s used to properly orientate the wafer before it’s handed off for processing. Proper positioning plays a crucial role in determining the level of accuracy and efficiency during manufacturing. A wide variety of wafer flats and notches can be accommodated.

Available Wafer Aligners:

  • Vacuum (backside contact)
  • Edge Grip (non-contact)

Wafer Handling Robot

The heart to any wafer handling system is the wafer handling robot. Paired up with a suitable end effector, the robot facilitates the handling of wafers between process steps.

Available Atmospheric Robot Options:

  • Single Arm Robot
    • Standard wafer handling robot used in a wide range of wafer handling applications
  • Dual Arm Robot
    • Reduce wafer swap times and overall cycle times

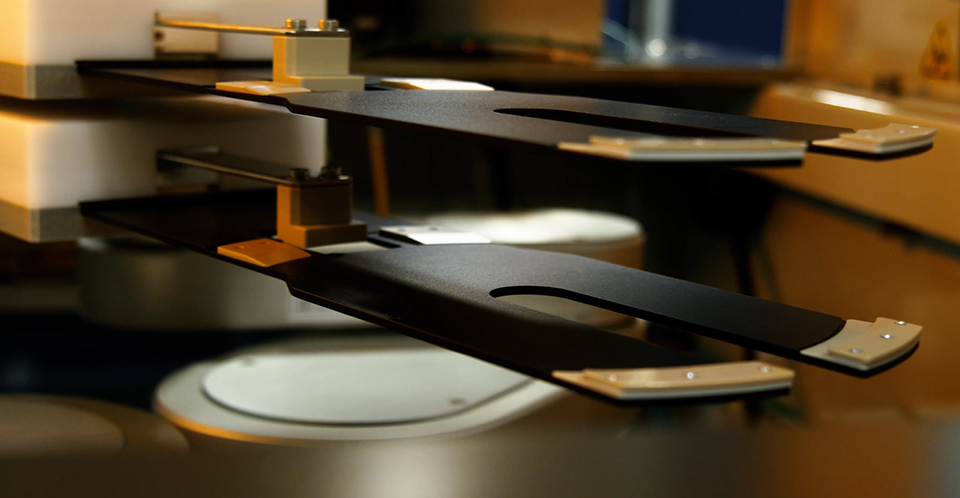

dual arm robotic wafer handling system Example: Coinstack Wafer Handling System

We understand the level of complexity that goes into wafer handling projects, that’s why we offer a range of available systems options to help develop a solution that supports your manufacturing goals.

Available System Options:

  • Clean Air Fan Filter Unit (FFU) for up to ISO2 cleanliness
  • Integrated Ionizers for ESD sensitive wafers
  • Optical Character Recognition (OCR) Reader for alphanumeric scribes, barcodes, and Data Matrix Codes (DMC)
  • Wafer Flipping Modules
  • SECS/GEM Communication with facility host network

Supported Wafer Types:

We support the handling of a variety of wafer types and sizes that range from 100mm to 450mm.


  • Thin Wafers (down to 50µm thickness)
  • Thick Wafers
  • Warped Wafers
  • Bonded Wafers
  • Trenched Wafers
  • Glass Wafers
  • Reticles & Photomasks
  • Other substrates upon request

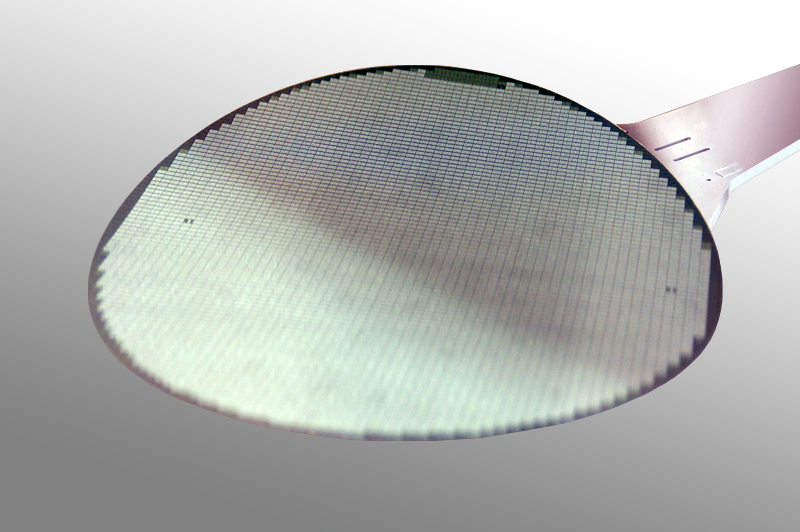

 Semiconductor Wafer Handling Systems Warped Wafers

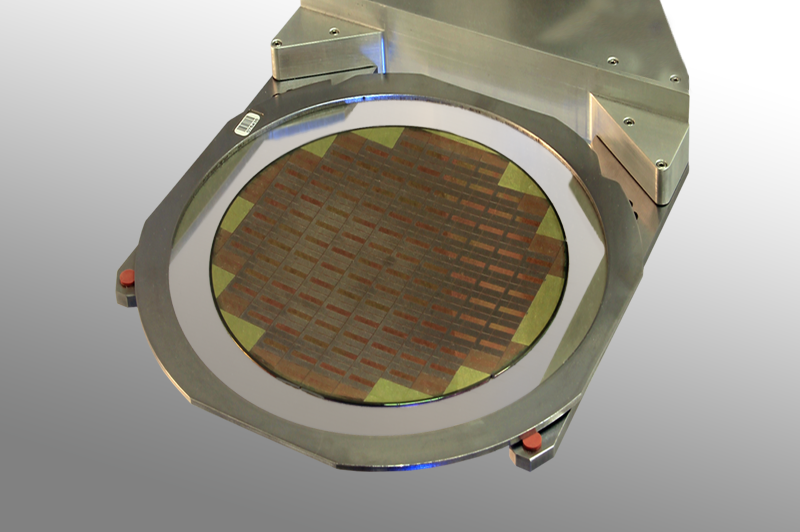

 Semiconductor Wafer Handling Systems Film Frames

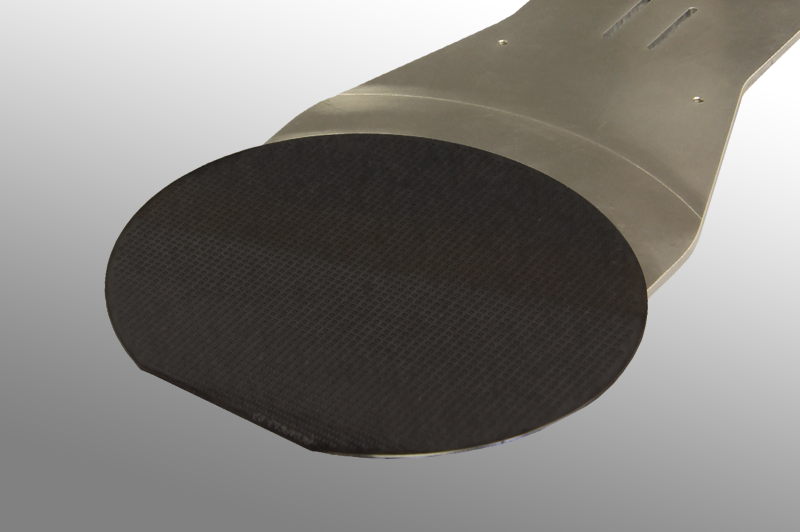

 Semiconductor Wafer Handling Systems Thin Wafers
 Semiconductor Wafer Handling Systems Glass Wafers

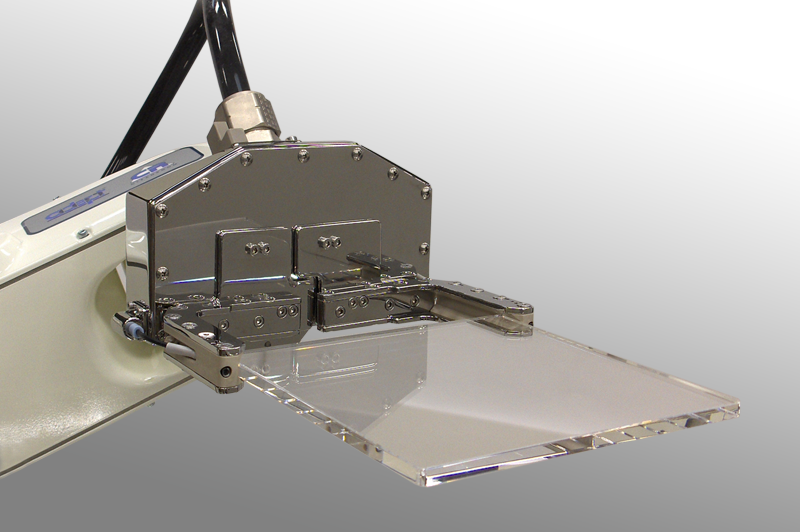

 Semiconductor Wafer Handling Systems Glass Reticles

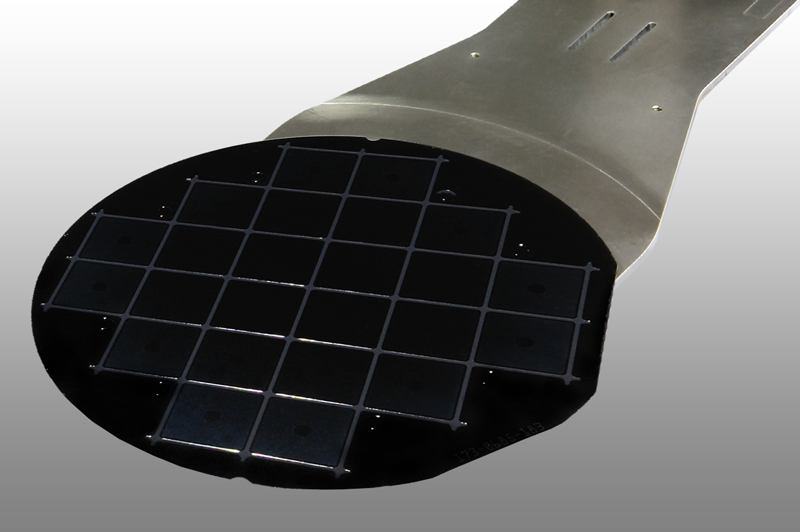

 Semiconductor Wafer Handling Systems Grooved Wafers

Available End Effector Technolgies

Wafer handling robots are paired with various end effectors that facilitates the handling of your wafers. We offer an extensive portfolio of patented end effector technologies that allow us to build systems that address your wafer handling needs.

  • Non-Contact Bernoulli
    • Perfect for applications dealing with wafers prone to contamination due to traditional handling methods.
  • Vacuum Handling
    • Standard gripping solution applicable to a wide variety of wafers and applications.
  • Edge Grip Wafer
    • Great for handling applications with contact exclusion zones
  • Dual Wrist End Effectors
    • Increases throughput, better cycle times, faster wafer swap times

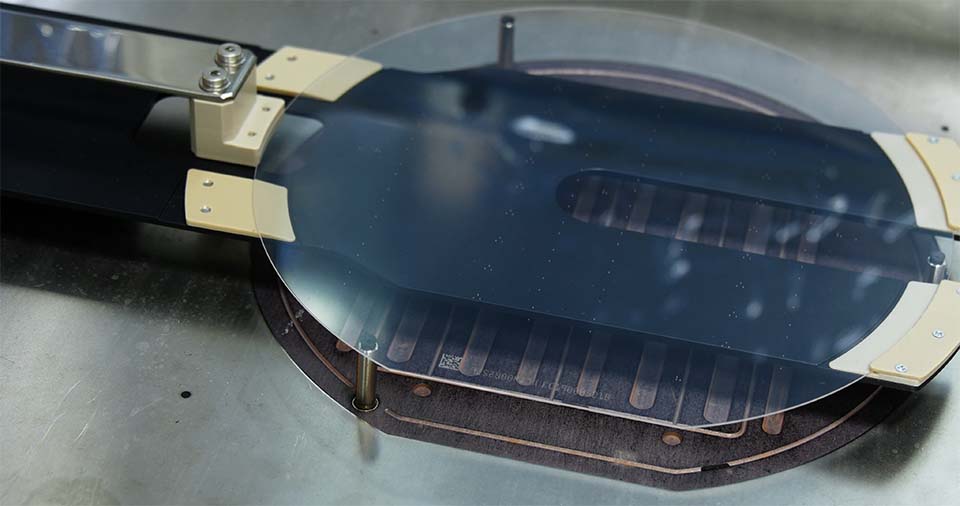

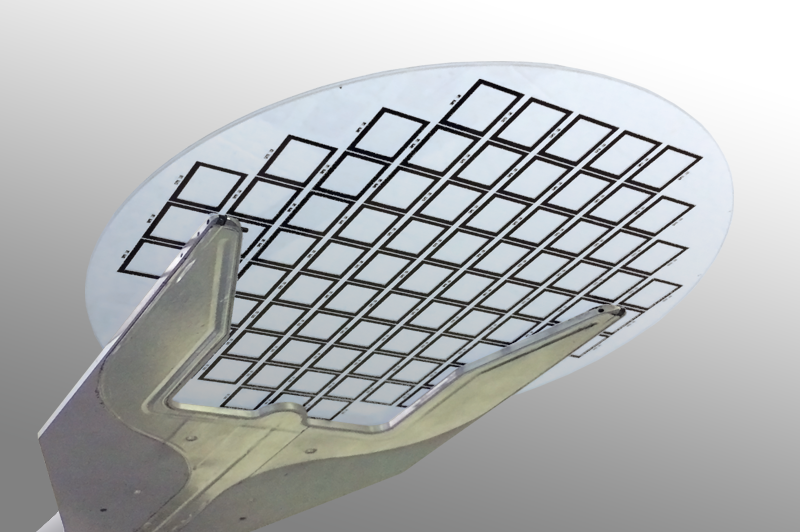

Example: Edge Grip Wafer End Effector with Glass Wafer

edge grip end effector hanlding a glass wafer


Vidyard Cover

Photomask Reticle Cleaning System

Vidyard Cover

Non-Contact Wafer Handling

Benefits of Automated Wafer handling

Whether you’re transitioning from manual wafer handling or looking to integrate automation with your process tool – we have the experience to provide a solution that meets your needs.


  • Increase Throughput and Yield
  • Eliminate Damage to Expensive and Fragile Wafers
  • Improved Accuracy and Repeatability
  • Improved Quality Control and Traceability

Custom Semiconductor Wafer Handling Projects

In addition to standard silicon wafer handling applications, we also manufacture custom automated solutions, tailored to your specific need.


  • Reticle Cleaners
  • Reticle Sorters
  • Coinstack Packers
  • Pallet + Wafer Applications

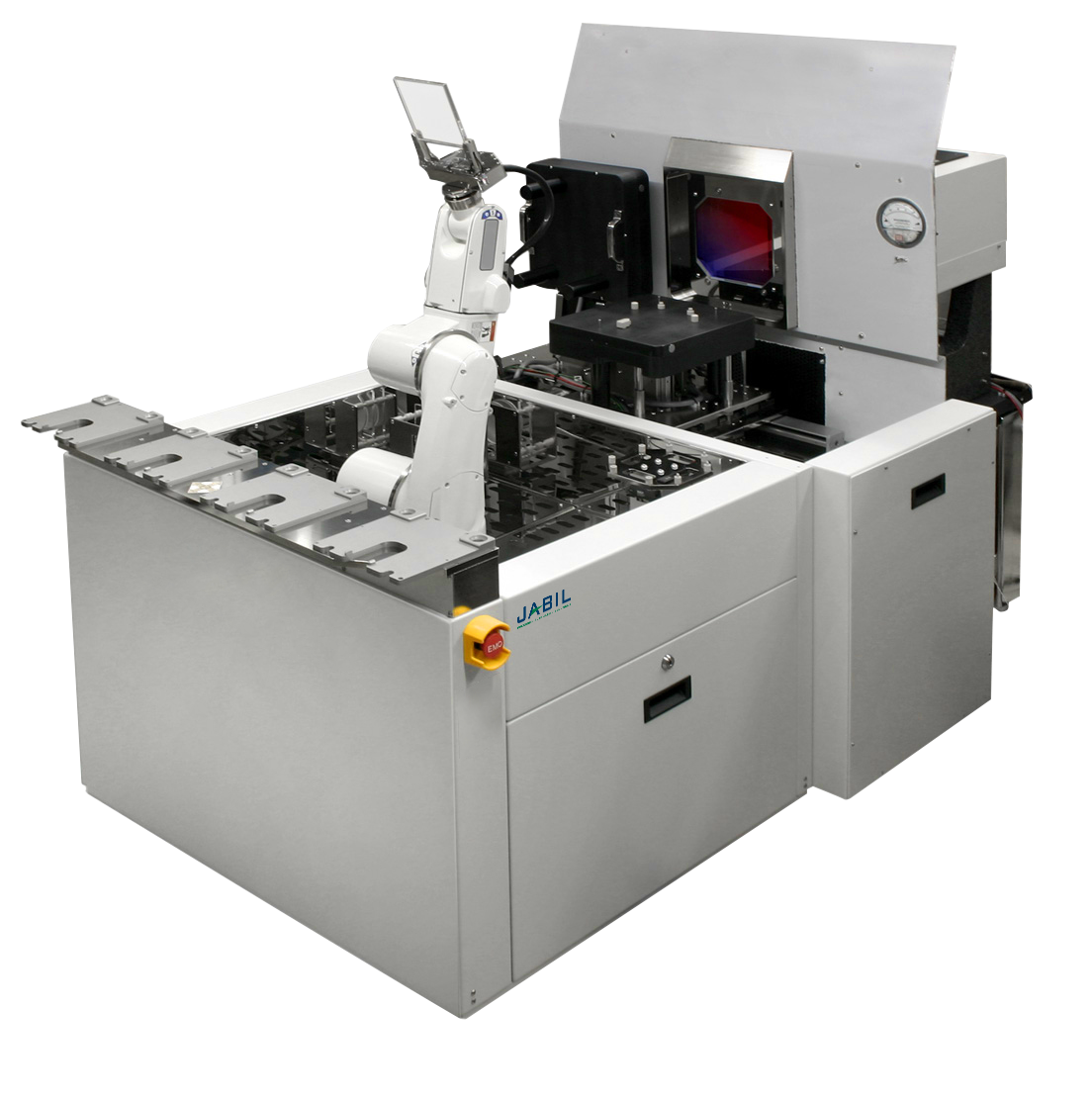

Example: Custom Glass Reticle Sorter System automated glass reticle sorter system
